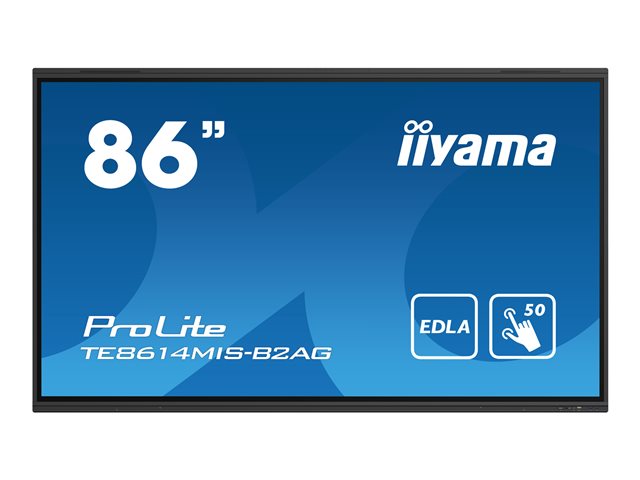

iiyama ProLite TE8614MIS-B2AG 86" Class (85.6" viewable) LED-backlit LCD display - 4K - for digital signage / interactive communication
iiyama ProLite TE8614MIS-B2AG 86" Class (85.6" viewable) LED-backlit LCD display - 4K - for digital signage / interactive communication
Couldn't load pickup availability
Free UK delivery
Manufacturer warranty
30-day returns
Secure checkout
Guaranteed safe & secure checkout
iiyama ProLite TE8614MIS-B2AG - 86" Diagonal Class (85.6" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) / 8-microphone array / optional slot-in PC capability - 4K UHD (2160p) 3840 x 2160 - matte black
Basic Specifications
- Manufacturer's Part Number
- TE8614MIS-B2AG
- EAN
- 4948570124046
- Product Type
- LED-backlit LCD flat panel display with touchscreen (multi touch) / 8-microphone array / optional slot-in PC capability
- Energy Class
- Class G
- Weight
- 63.6 kg
- Product Description
- iiyama ProLite TE8614MIS-B2AG 86" Class (85.6" viewable) LED-backlit LCD display - 4K - for digital signage / interactive communication
- Model
- iiyama ProLite TE8614MIS-B2AG
- Colour
- Matte black
- Manufacturer Warranty
- 5-year warranty
- Dimensions (WxDxH)
- 195.7 cm x 8.6 cm x 117.1 cm
- HDMI Ports Qty
- 4 ports
- LCD Backlight Technology
- LED backlight
- Resolution
- 3840 x 2160
- Image Aspect Ratio
- 16:9
- Power Consumption Operational
- 267 Watt
- Display Format
- 4K UHD (2160p)
- USB
- 6 ports
- Voltage
- AC 100-240 V (50/60 Hz)
- Diagonal Class
- 86"
- Included Accessories
- Remote control, 4 touch pens, Wi-Fi module (OWM002), NUC mounting bracket, webcam mounting bracket
- Power Consumption Stand by
- 0.5 Watt
- Connectivity
- Wi-Fi, LAN
- Video Interface
- HDMI
- Commercial Use
- Interactive
- Diagonal Size
- 85.6"
- Speaker System
- 4 speakers
- PC Interface
- DisplayPort, USB-C
- Technology
- VA
- TV Tuner
- No tuner
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- Smart
- No
- Display Resolution
- 4K Ultra HD (2160p)
- Storage Capacity
- 64 GB
- Energy Label QR Code URL
- https://eprel.ec.europa.eu/qr/1941952
General
- Product Type
- LED-backlit LCD flat panel display
- Energy Label QR Code URL
- Http://eprel.ec.europa.eu/qr/1941952
- Energy Class
- Class G
- Power Consumption Operational
- 267 Watt
- Power Consumption SDR (On mode)
- 246 kWh/1000h
- Diagonal Class
- 86"
- Diagonal Size
- 85.6"
- Commercial Use
- Yes - interactive digital signage
- Combined With
- Touchscreen (multi touch) / 8-microphone array / optional slot-in PC capability
- Operating System
- Android OS 13
- TV Tuner
- No tuner
- TV Tuner Presence
- No
- Video Interface
- HDMI
- HDMI Ports Qty
- 4 ports
- PC Interface
- DisplayPort, USB-C
- Modes
- Landscape mode
- Design
- Thin Bezel Design
- Cooling System
- Fanless
- Width
- 195.7 cm
- Depth
- 8.6 cm
- Height
- 117.1 cm
- Weight
- 63.6 kg
- Enclosure Colour
- Matte black
Power
- Power Device
- Power supply
- Input Voltage
- AC 100-240 V (50/60 Hz)
- Power Consumption Stand by
- 0.5 Watt
- Power Consumption (Off Mode)
- 0.3 Watt
- On / Off Switch
- Yes
Dimensions & Weight (Shipping)
- Width (Shipping)
- 211 cm
- Depth (Shipping)
- 22.5 cm
- Height (Shipping)
- 129.1 cm
- Weight (Shipping)
- 80.2 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
Miscellaneous
- Included Accessories
- 4 touch pens, Wi-Fi module (OWM002), NUC mounting bracket, webcam mounting bracket
- Cables Included
- HDMI cable ¦ USB cable
- Compliant Standards
- Plug and Play, CB, RoHS, WEEE, REACH, TUV Bauart, ERP, EAC, REACH SvHC, HDCP 2.3, HDCP 1.4, HDCP 1.3, Google EDLA, DDC-2B
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Network & Internet Multimedia
- Functionality
- Digital video playback, WEB browsing, Internet video playback, cloud storage playback
- Connectivity
- Wi-Fi, LAN
- LAN Protocol
- Fast Ethernet
- Wi-Fi Protocol
- 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac, 802.11ax
- Bluetooth Version
- Bluetooth 5.0
- Connect & Share
- EShare, iiyama Share
Stands & Mounts
- Flat Panel Mount Interface
- 800 x 600 mm
- VESA Compatibility
- Yes
Connections
- Connector Type
- 4 x HDMI input ¦ DisplayPort input ¦ USB-C 3.2 Gen 1 with 15W Power Delivery ¦ Audio line-in ¦ RS-232C input ¦ LAN input ¦ Infrared input ¦ HDMI output ¦ SPDIF output ¦ Audio line-out ¦ 2 x USB 3.2 Gen 1 - front ¦ 2 x USB 3.2 Gen 1 - rear ¦ USB-C 3.2 Gen 1 with DisplayPort 1.2, 100W Power Delivery
Remote Control
- Type
- Remote control
- Battery Included
- Yes
Audio System
- Speaker System
- 4 speakers
- Output Power / Total
- 52 Watt
- Speakers
- 2 x main channel speaker - 18 Watt ¦ 2 x main channel speaker - 8 Watt
Media Player
- USB Port
- Yes
- USB Ports Qty
- 6
- Configuration
- ARM Cortex-A76 Quad-Core + ARM Cortex-A55 Quad-Core - 8 GB - 64 GB - Mali-G610 MC4
Display
- LCD Display Technology
- VA
- Pixel Pitch
- 0.494 mm
- Colour Support
- 1070000000 colours
- Resolution
- 3840 x 2160
- Display Format
- 4K UHD (2160p)
- Image Aspect Ratio
- 16:9
- Frame Rate & Enhancement Technology
- 60 Hz Refresh Rate
- LCD Backlight Technology
- LED backlight
- Coating
- Anti-glare, 7H Hard, 3 mm glass
- Image Contrast Ratio
- 4000:1
- Dynamic Contrast Ratio
- 5000:1
- Brightness
- 435 cd/m²
- Viewing Angle
- 178 degrees
- Viewing Angle (Vertical)
- 178 degrees
- Touchpoints Qty
- 50
- Response Time
- 6.5 ms
- Display Menu Language
- English, German, French, Spanish, Italian, Russian, Czech, Dutch, Polish, Finnish, Danish
- Operation Hours / Days
- 24 / 7
- Features
- 10-bit support, PureTouch-IR technology, zero air-gap, blue light reduction, OSD lock, 24/7 operation time, 92% light transmittance
